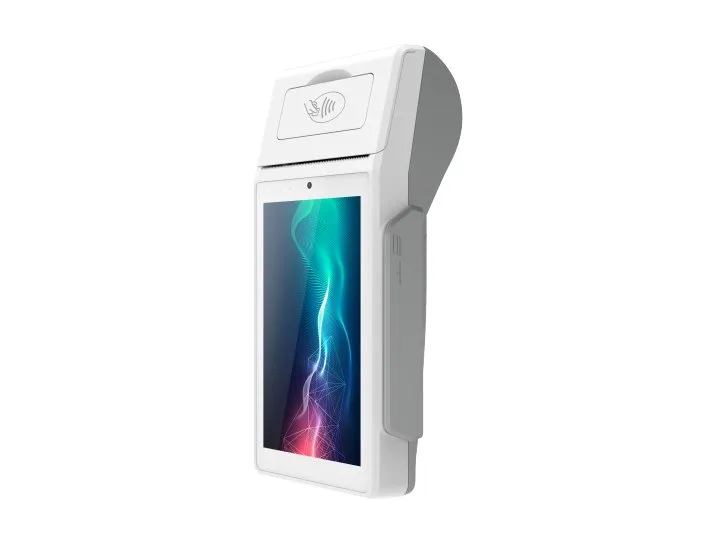

KS8226 Smart POS
KS8226 Smart POS

KS8226 Smart POS

A powerful portable all-in-one payment terminal equipped with latest Android system.

Smart POS

Smart POS: Accepts Multiple Payment Methods

Accepts a wide range of payment methods, such as QR, EMV, Chip, Magnetic, and NFC.

All-in-one Design

An all-in-one Android terminal that's slim and offers an excellent experience.

Smart POS: Versatile and Dependable Network Connectivity

Smart POS: More Expansion, More Options

Featuring more expansion ports with standard interfaces and optional multi - function modules. You can choose from various add - ons, including iris recognition, fingerprint recognition (optical/capacitive), dock (for port, charging, and extension display), and an external charger.

KS8226
ProcessorCortex-A53 Quad Core @1.4 GHz + 32 bit security processor
Memory1 GB RAM + 8 GB ROM;2GB RAM+16GB ROM (Optional), MicroSD x1 support up to 128GB
OSZOS based on Android 10
Algorithm3DES, AES, RSA, SHA-256,SM2,SM3,SM4, etc.
Display5" 720p1280 Backlight control Capacitive touch screen
Cellular NetworkGSM / WCDMA / EVDO / TD-SCDMA / TDD-LTE / FDD-LTE SIM x1 + PSAM x2
AudioSpeaker x1 (0.5W, 82DB ± 3dB), Microphone x1
PortUSB Type-C (USB2.0), Virtual PIN pad
BatteryLipo battery, 7.4V/2600mAh, Optional wide temperature battery
AdapterInput AC 100 - 240V, Output DC 5V/2A
Dimension (LxWxH)190mm x 82mm x 59mm
EnvironmentWorking temperature: -10°C ~ +50°C, Storage temperature: -20°C ~ +70°C, Relative humidity: 10% - 90% RH (non-condensing)
CameraRear: 5 mega pixels, flash, auto focus,Front;0.3 mega pixels support1D/2D
Card ReaderMagneticx1,Contact ICx1, Contactless IC x1
PrinterBuilt-in high-speed thermal printer, Paper width 58mm,Paper roll outer diameter 40mm
BluetoothBluetooth 4.2, BR / EDR + BLE
LocationGPS + GLONASS or GPS + BDS
BiometricOptional fingerprint
WIFIIEEE 802.11b/g/n 2.4GHz
