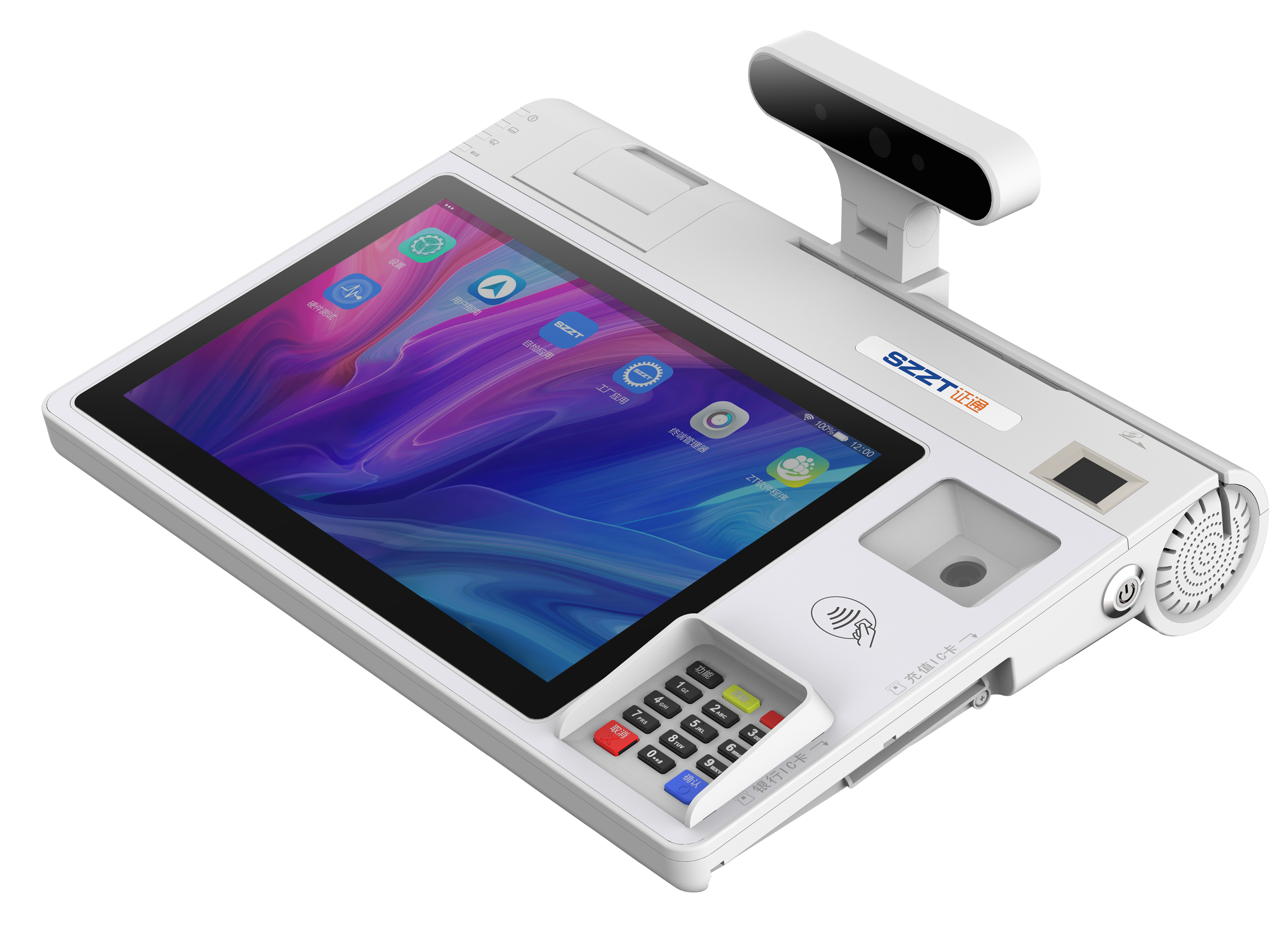

KS8123 Desktop Terminal
Stunning large display
10.1 inch IPS display, excellent experience.
Rotatable HD camera
Perfect image capture.
Various payments acceptable
Accept NFC, Magnetic, Contact IC, Contactless IC, QR code.
Biometric technology
Strong security biometric system including facial recogniticon, fingerprint, iris, ID, etc..
Desktop Terminal
Rotatable HD Camera for Perfect Image Capture
Equipped with a rotatable HD camera for flawless image capture. Supports various payment methods, including NFC, magnetic, contact IC, contactless IC, and QR code.
Biometric Technology: High - security Identification
A highly secure biometric system featuring facial recognition, fingerprint scanning, iris recognition, and ID verification.
Desktop Terminal
Stunning large display
10.1 inch IPS diaplay, excellent experience.
KS8123 Desktop Terminal
| Processor | Pro Version: Octa-core@2GHz; Standard Version: [email protected] |
| Memory | 4GB RAM + 64GB ROM (Pro Version); 2GB RAM + 16GB ROM (Standard Version) |
| OS | ZOS based on Android 9.0 (Pro Version); ZOS based on Android 7.1 (Standard Version) |
| Algorithm | 3DES, AES, RSA, SHA-256,SM2\SM3\SM4 etc. |
| Display | 10.1" 1280*800 adjustable backlight; Multi-touch capacitive touch screen |
| Card Reader | Magnetic x1, Contact IC x2, Contactless IC x1, PSAM x2 |
| Printer | Built-in 58mm thermal printer,40mm paper roll |
| Camera(Optional) | 13mega-pixel optical camera; 3D structured light(facial recognition) |
| Scanner | QR; EAN-13/UPC-A/UPC-E; EAN-8; Code 128;Code 39,Interleaved 2 of 5 |
| Ethernet | 10/100Mbps |
| Cellular Network | GSM/WCDMA/EVDO/TD-SCDMA/TDD-LTE/FDD-LTE |
| Bluetooth | 4.0 and above BLE; |
| Port | USB Type A x2, RS232 x1, RJ45 LAN*1 Power*1 HDMI x1, MicroUSB x1 |
| Adapter | Input: AC 100 - 240V; Output: DC 12V/3A |
| Dimension | 320mm(L) x 260mm(W) x 60mm(H) |
| Environment | Working temperature: 0 - 50°C; Storage temperature: -20 - 70°C; Relative humidity: 10% - 90% (non-condensing) |
| WIFI | IEEE 80211B/G/N 24Ghz |
| Location | Built-in GPS/Beidou/Glonass LBS AGPS |
| Keypad | power*1/Built-in Pinpad External Pinpad(optional） |
| Speaker | 2W |
