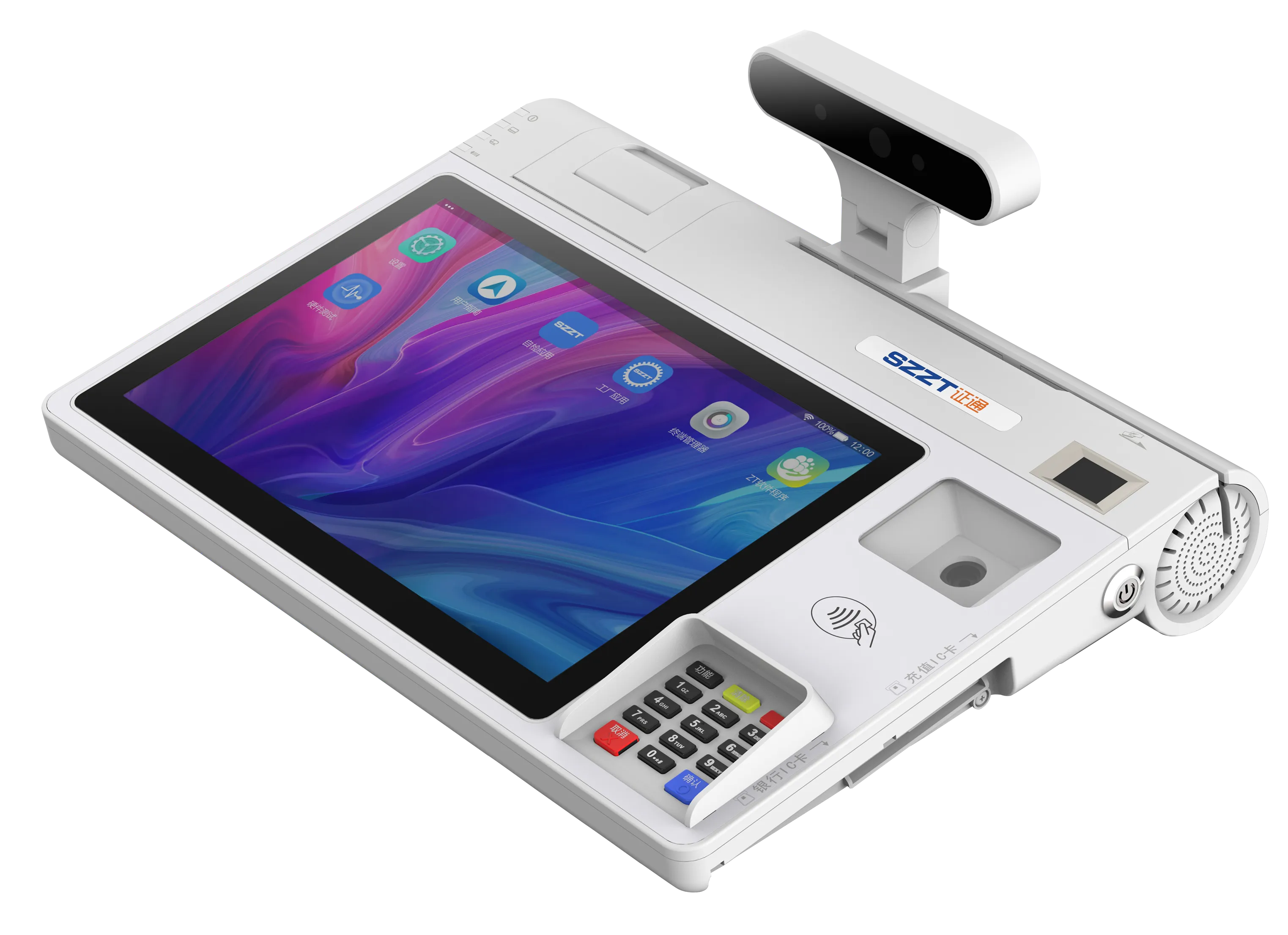

KS8123 Desktop Terminal

Stunning large display
10.1 inch IPS display, excellent experience.

Rotatable HD camera
Perfect image capture.

Various payments acceptable
Accept NFC, Magnetic, Contact IC, Contactless IC, QR code.

Biometric technology
Strong security biometric system including facial recogniticon, fingerprint, iris, ID, etc..

Get Best Price Leave a Message

Desktop Terminal

Rotatable HD Camera for Perfect Image Capture

Equipped with a rotatable HD camera for flawless image capture. Supports various payment methods, including NFC, magnetic, contact IC, contactless IC, and QR code.

Biometric Technology: High - security Identification

A highly secure biometric system featuring facial recognition, fingerprint scanning, iris recognition, and ID verification.

Desktop Terminal

Stunning large display
10.1 inch IPS diaplay, excellent experience.

KS8123 Desktop Terminal

Processor	Pro Version: Octa-core@2GHz; Standard Version: [email protected]
Memory	4GB RAM + 64GB ROM (Pro Version); 2GB RAM + 16GB ROM (Standard Version)
OS	ZOS based on Android 9.0 (Pro Version); ZOS based on Android 7.1 (Standard Version)
Algorithm	3DES, AES, RSA, SHA-256,SM2\SM3\SM4 etc.
Display	10.1" 1280*800 adjustable backlight; Multi-touch capacitive touch screen
Card Reader	Magnetic x1, Contact IC x2, Contactless IC x1, PSAM x2
Printer	Built-in 58mm thermal printer,40mm paper roll
Camera(Optional)	13mega-pixel optical camera; 3D structured light(facial recognition)
Scanner	QR; EAN-13/UPC-A/UPC-E; EAN-8; Code 128;Code 39,Interleaved 2 of 5
Ethernet	10/100Mbps
Cellular Network	GSM/WCDMA/EVDO/TD-SCDMA/TDD-LTE/FDD-LTE
Bluetooth	4.0 and above BLE;
Port	USB Type A x2, RS232 x1, RJ45 LAN1 Power1 HDMI x1, MicroUSB x1
Adapter	Input: AC 100 - 240V; Output: DC 12V/3A
Dimension	320mm(L) x 260mm(W) x 60mm(H)
Environment	Working temperature: 0 - 50°C; Storage temperature: -20 - 70°C; Relative humidity: 10% - 90% (non-condensing)
WIFI	IEEE 80211B/G/N 24Ghz
Location	Built-in GPS/Beidou/Glonass LBS AGPS
Keypad	power*1/Built-in Pinpad External Pinpad(optional）
Speaker	2W
