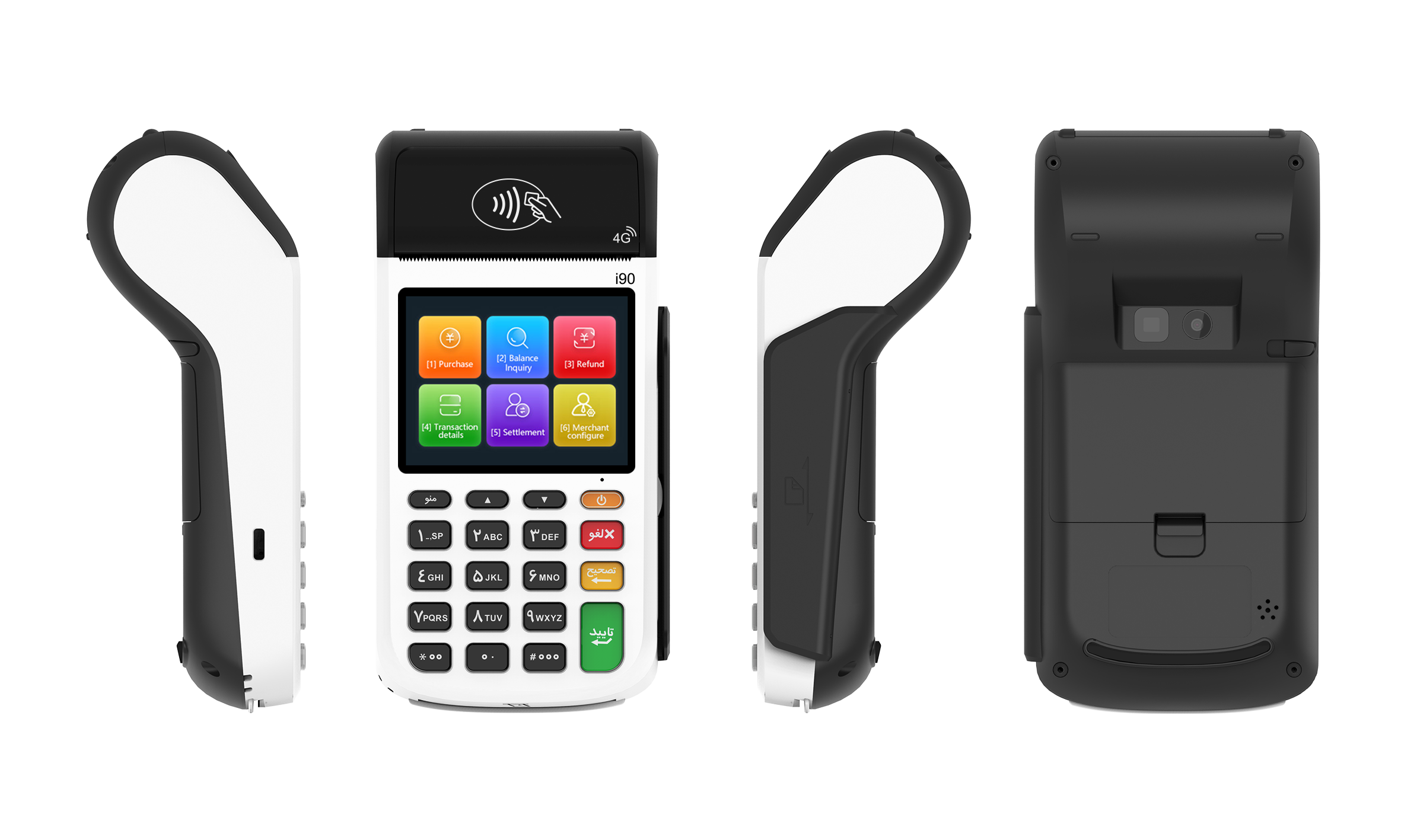

i90 Portable POS
Handy size, enhanced communication and battery life, to support easy card payment & mobile payment anywhere.
Portable POS
Compact Size, Enhanced Communication and Battery Life
| Processor | 32 - bit secure processor |
| Memory | SRAM 1 MB + FLASH 8MB |
| Operating system | Based on RTOS |
| Algorithm | 3DES, AES, RSA, SHA - 256, DUKPT, etc |
| Magnetic card reader | 1/2/3 track bidirectional card reader Complies with ISO7810, ISO7811, and ISO7813 specifications |
| Contact card reader | Comply with ISO7816 specification |
| Contactless card reader（Optional） | Built - in NFC antenna Frequency: 13.56MHz Comply with ISO/IEC 14443 type A&B, Mifare® Protocol |
| Communication | 4G (Band 1/3/5/7/8/20/28/38/40/41) 2G (Optional, 850/900/1800/1900 MHz)WIFI (2.4 GHz, 802.1 b/g/n) |
| Display | 2.8" 320×240 color LCD Resistive touch screen (Optional) |
| Scanner(Optional) | 0.3MP scanner, supports 1D/2D code |
| Keypad | 10 numeric keys, 9 function keys |
| Audio | Speake*1 or Buzzer*1 |
| Printer | Built - in 58mm high - speed thermal printer Outer diameter of paper roll: φ40mm Support over - temperature, out of paper prompts |
| Battery | 3.7V 2600 mAh, Li - Ion rechargeable battery |
| Power Adapter | Input:100V~240V AC/50~60Hz/0.3A Output：5V DC/1A |
| Data interface | 1 * USB Type - C 2 * SIM card slots (Supports dual card and dual standby)1 * PSAM card slot |
| Dimension | 164.7mm×83.3mm×62.1mm (L × W × H) |
| Operating temperature | Operating temperature:-10°C - 50°C Storage temperature:-20°C - 70°C Relative humidity:10% - 90% RH (no condensation) |
| Certifications | PCI PTS 6.x / EMV Contact L1, EMV Contact L2, EMV Contactless L1 / PayPass / PayWave / CE |
